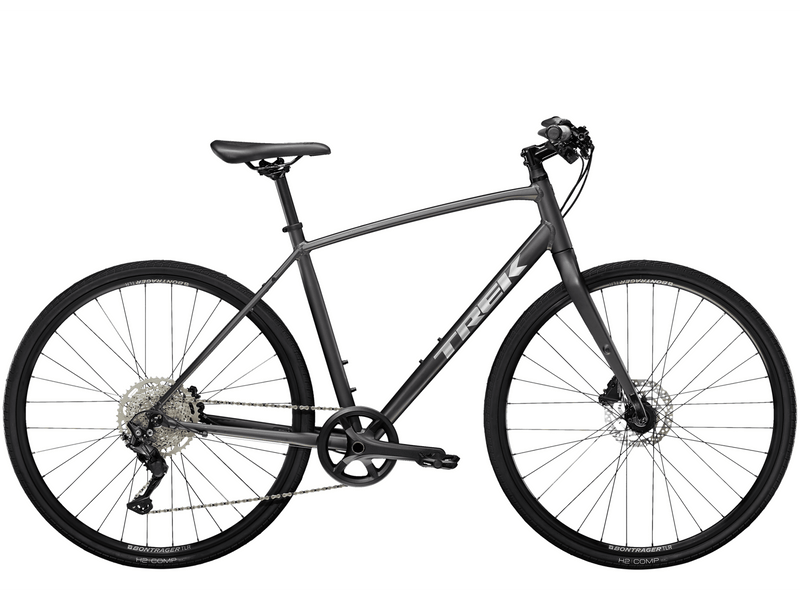

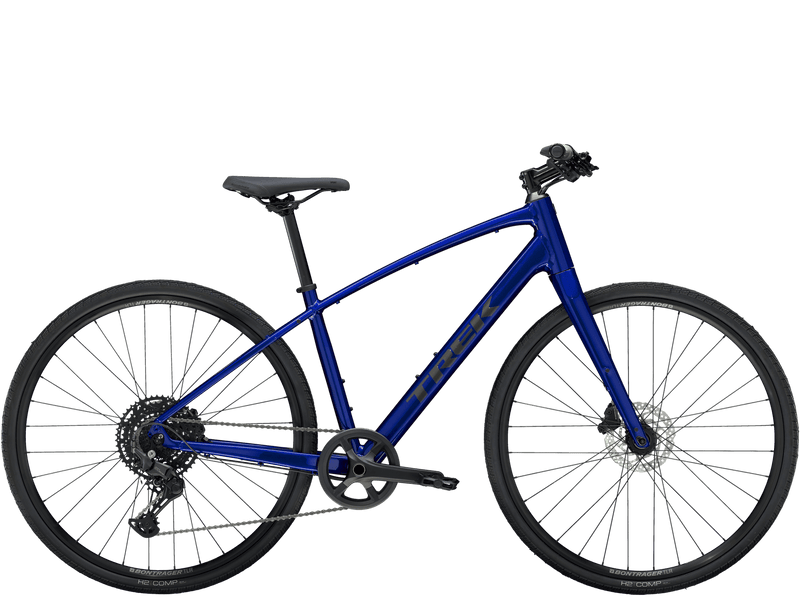

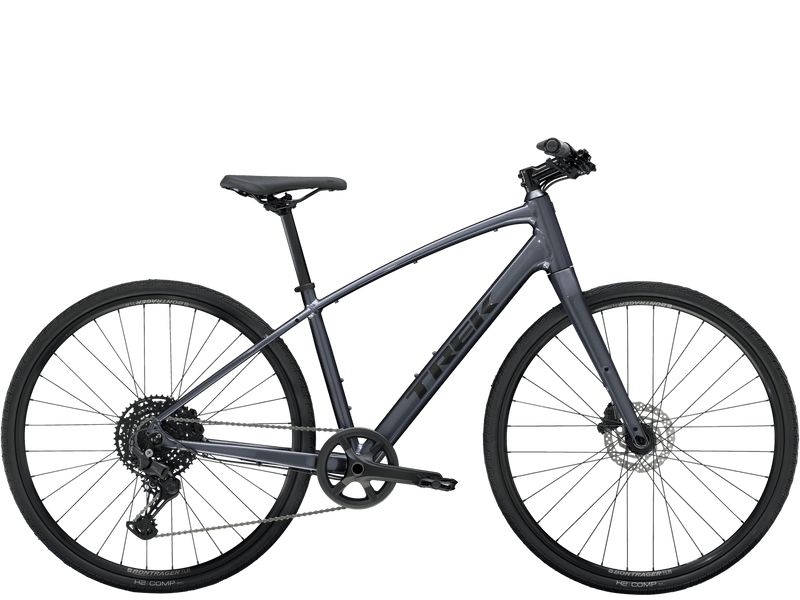

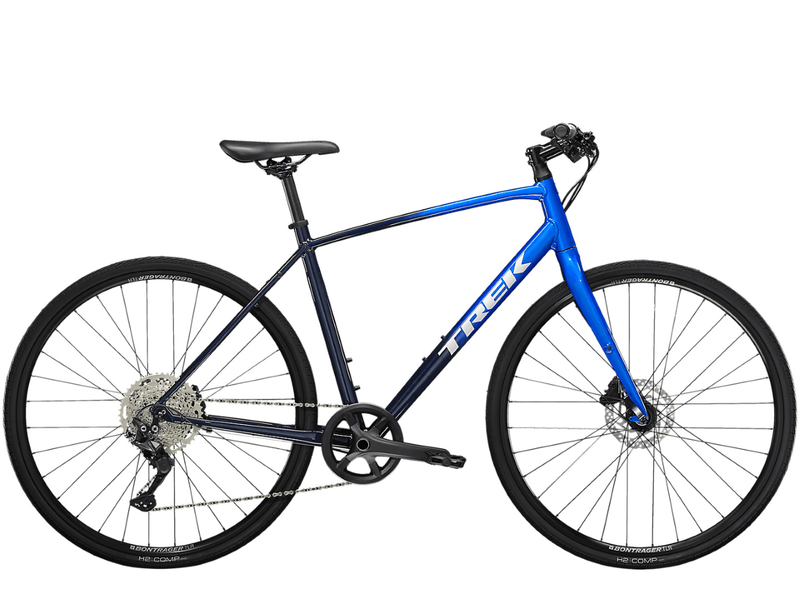

FX 3 Disc is a versatile hybrid bike that's primed for performance, comfort, and utility. It has features like a lightweight aluminum frame, a carbon fork, and powerful disc brakes that stop in any weather. It's a commuting pro if you want it to be, or the perfect fitness companion on pavement and rail trails.
- More confident braking means bad weather doesn't have to keep you from enjoying your ride
- It's versatile and does whatever you want it to do, whether that's riding for fitness, commuting, or cruising to the farmer's market to pick up groceries
- The cables are routed internally, which protects them from the elements and adds to the bike's sleek look
- It's easy to accessorize with racks, a kickstand, fenders, lights, and more!
- You can pair FX with your smartphone and send your ride data to your favorite fitness app when you add DuoTrap S
Specifications:
Frameset
Frame: Alpha Gold Aluminum, DuoTrap S compatible, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR
Fork: FX Carbon, rack and fender mounts, flat mount disc, 405mm axle-to-crown, ThruSkew 5mm QR
Wheels
Front: Hub Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear: Hub Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rim: Bontrager Tubeless Ready Disc, 32-hole, presta valve
Spokes: 14g, stainless
Tire: Bontrager H2 Hard-Case Lite, wire bead, 30 tpi, 700x32c
Drivetrain
Shifter: Shimano Acera M3000, 9 speed
Front Derailleur: Shimano T3000, 34.9mm clamp, top swing, dual pull
Rear Derailleur: Shimano Acera M3000, Shadow design, long cage
*Crank Size: S, M
Shimano MT210, 46/30, chainguard, 170mm length
Size: L, XL, XXL
Shimano MT210, 46/30, chainguard, 175mm length
Cassette: Shimano HG200, 11-36, 9 speed
Chain: KMC X9
Pedal: Bontrager Satellite City pedal
Components
Saddle: Bontrager H1
Seatpost: Bontrager alloy, 27.2mm, 12mm offset, 330mm length
*Handlebar: Size: S, M
Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 600mm width
Size: L, XL, XXL
Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 660mm width
Grips: Bontrager Satellite IsoZone Plus, lock-on, ergonomic
*Stem: Size: S
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: M, L
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Size: XL, XXL
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Headset: 1-1/8'' threadless, sealed cartridge bearings
Brake: Shimano MT201 hydraulic disc, flat mount, 160mm rotor
Brake Pad: Shimano Resin Disc Pad B01S
Weight: M - 11.74 kg / 25.88 lbs
